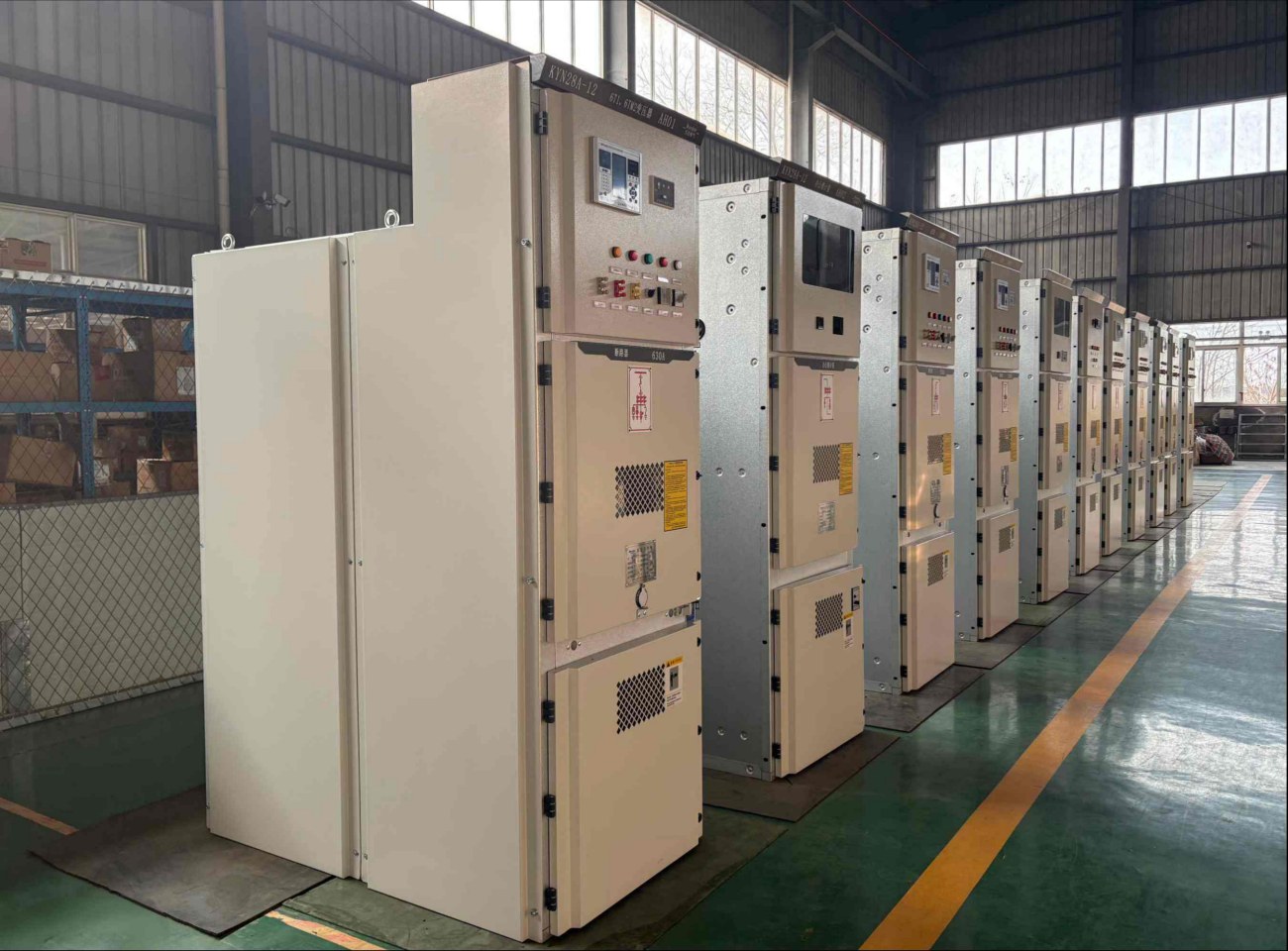

Medium voltage switchgear is electrical equipment used to control, protect, and isolate within the medium voltage range. It is responsible for controlling, protecting, and isolating electrical power at the “medium voltage” level – roughly between 1kV and 35kV, with the specific range depending on local voltage level standards.
The core of medium voltage switchgear is a set of electrical components installed in a protective enclosure, working together to make current flow safely and efficiently. In actual systems, it is typically connected to equipment such as a busbar trunking system or a distribution transformer, forming a complete power distribution network.
Specifically, it mainly does three things:
• Control. It can regulate the current in different parts of the power system, accurately deliver electrical energy to where it is needed, and ensure the stable operation of various equipment.
• Protection. If a short circuit or insulation damage occurs, the medium voltage switchgear can immediately detect the abnormality, quickly isolate the problematic part, avoid equipment damage, reduce risks, and protect on-site workers.
• Isolation. The isolation function can completely disconnect a certain section of the line from the power source, allowing technicians to inspect, repair, or upgrade with peace of mind, without worrying about electric shock.
Medium voltage switchgear is a basic component of the power system, effectively ensuring the reliable, safe, and continuously stable operation of power infrastructure.
FAQs
1. In real terms, what does medium voltage switchgear actually do for a system?
It controls power flow, protects equipment, and isolates faults when needed. Wondon integrates it to keep medium-voltage systems safe, stable, and easy to manage in real operation.
2. Where does it “sit” in a real power network?
It works between key equipment like transformers, busbar systems, and downstream loads. Wondon designs it as the control point that connects and protects the whole distribution chain.
3. What happens when a fault like a short circuit, occurs?
The system detects the problem and quickly isolates the faulty section to prevent damage. Wondon focuses on fast protection response to reduce risk and downtime.
4. I’m not sure about the voltage range—how do I know if this applies to my project?
Medium voltage usually refers to 1kV–35kV systems. Wondon helps you confirm the right level based on your grid standards and project conditions.
5. If I only understand my project at a basic level, can Wondon still help me choose?
Yes, absolutely. Many clients start there. Wondon turns your basic system description into a clear and workable medium voltage switchgear solution.
