Medium and low voltage switchgear undertakes core functions including power distribution, circuit protection and equipment control in industrial production, power infrastructure and commercial building projects.
For many overseas purchasers, EPC contractors and electrical engineering teams, selecting medium and low voltage switchgear is far more than simply comparing prices or appearances. Instead, it requires comprehensive evaluation of voltage class, load demand, safety standards, operating environment and long-term maintenance costs.
Mismatched medium and low voltage switchgear may trigger production shutdown risks, create maintenance obstacles and even undermine the operational stability of the whole project.
So how can you complete the correct selection of medium and low voltage switchgear in actual procurement? Based on the practical demands of industrial users and project purchasers, this article sorts out several core judgment criteria.
Clarify Power System Demands Before Picking Medium and Low Voltage Switchgear
At the early stage of most procurement projects, clients tend to directly enquire about product prices or models. Nevertheless, a proper selection starts with sorting out project requirements.
From experience serving overseas electrical projects, I find that medium and low voltage switchgear varies greatly across different application scenarios. For instance, manufacturing factories prioritize continuous power supply capacity, while infrastructure projects attach more importance to safety grades and long-term reliability of medium and low voltage switchgear.
Thus, confirm the following basic information before finalizing your equipment scheme:
Confirm System Voltage Class

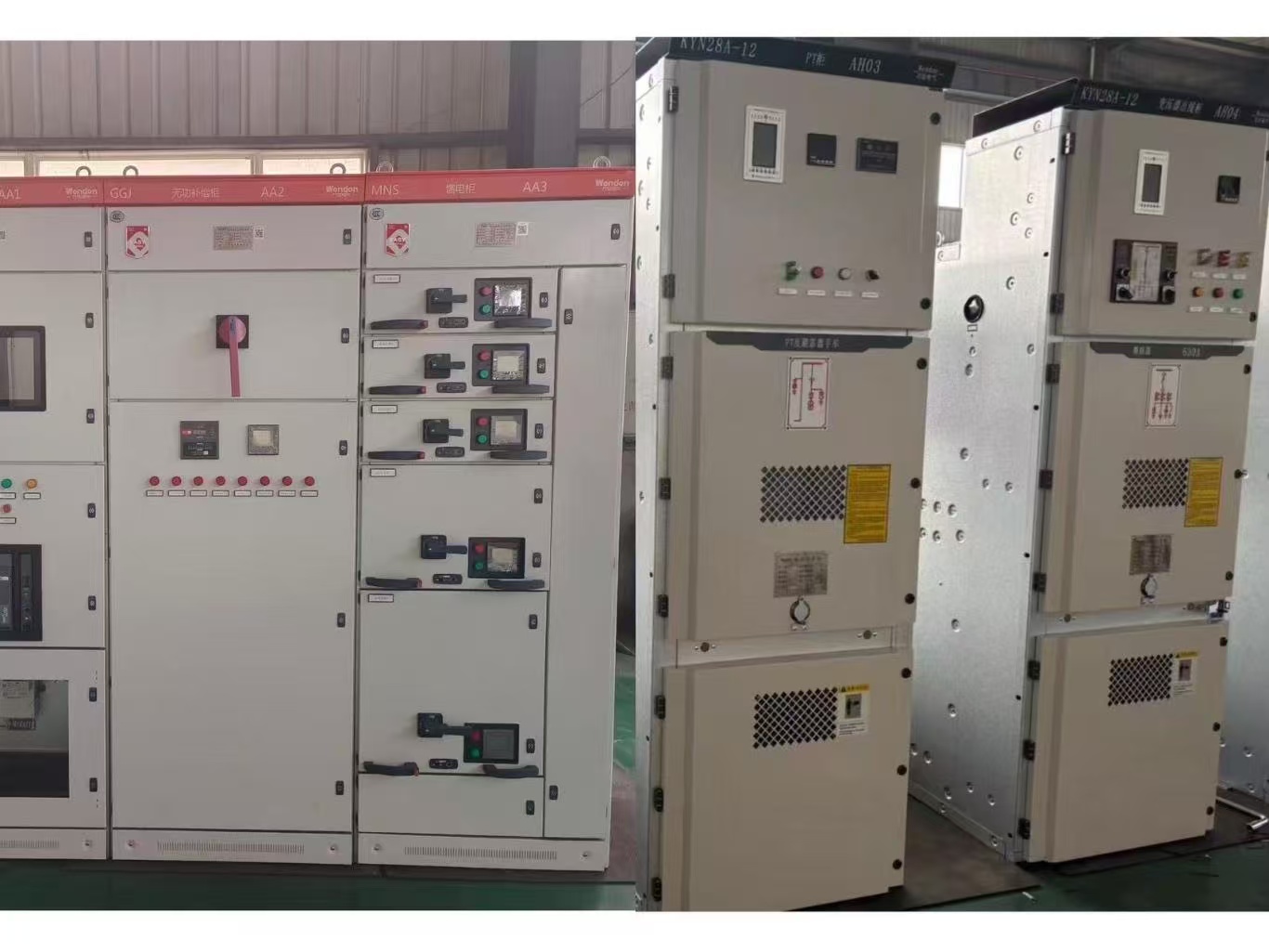

First, distinguish whether your power system applies medium voltage or low voltage equipment.
- Medium voltage switchgear is mostly deployed on the medium-voltage side of power distribution systems, such as industrial parks, transformer substations and large-scale factories.
- Low voltage switchgear serves terminal power distribution scenarios, including production lines, building power distribution systems and equipment control systems.
Medium voltage switchgear and low voltage switchgear feature differentiated design specifications corresponding to distinct voltage levels, and they cannot be substituted arbitrarily.
Evaluate Load Capacity and Future Expansion Needs
When selecting medium and low voltage switchgear, you need to take both current load and future factory expansion into account.
Key indicators to check during procurement include:
- Rated voltage
- Rated current
- Short-circuit withstand capability
Take an expanding factory as an example. If you select medium and low voltage switchgear only matching present power consumption, system reconstruction will be required after adding new production lines, bringing extra time and cost expenses.
Pick Appropriate Medium and Low Voltage Switchgear Based on Application Scenarios
There is no universal “best cabinet type” for all projects. The most suitable medium and low voltage switchgear must match your actual application demands.
Industrial Projects: Prioritize Reliability and Maintenance Convenience
Manufacturing plants, mining sites, energy projects, and other industrial settings require medium and low voltage switchgear to run continuously for long hours.
Key evaluation points for procurement:
- Whether the equipment structure facilitates inspection and maintenance
- Whether core components are easy to repair and replace
- Whether medium and low voltage switchgear meets project safety standards
For industrial sites with frequent maintenance demands, draw-out type switch cabinets are widely recommended for easier overhaul and component replacement.
Commercial Buildings & Infrastructure Projects: Focus on Safety and System Stability
Commercial buildings, transportation hubs and public infrastructure projects put higher emphasis on the following aspects of medium and low voltage switchgear:
- Power distribution system stability
- Space utilization efficiency
- Ingress protection rating
You need to determine medium and low voltage switchgear solutions combining installation conditions, electrical design schemes and local standard requirements.
Prioritize Technical Parameters of Medium and Low Voltage Switchgear Over Pure Price Comparison
Price is an essential factor in purchasing medium and low voltage switchgear, yet industrial clients should value the full-lifecycle value of equipment more.
Below are core technical parameters dominating procurement decisions:
Rated Voltage & Rated Current
Medium and low voltage switchgear must fully satisfy system operating specifications. Insufficient equipment capacity poses hidden dangers to operational safety, while over-specification leads to unnecessary investment waste. Matching medium and low voltage switchgear with system demands rationally matters more than blindly choosing oversized equipment.
Short-circuit Protection Performance
Abnormal current may occur during power system operation, so medium and low voltage switchgear shall possess corresponding short-circuit withstand and protection performance. This indicator is critical to protect personnel and equipment safety for industrial projects.
Ingress Protection Rating & Environmental Adaptability
Installation conditions directly affect the selection of medium and low voltage switchgear. Typical differentiating factors include:
- Indoor vs. outdoor installation
- Heavy dust environment vs. standard environment
- Ambient temperature and humidity
Make sure your selected medium and low voltage switchgear is designed to adapt to on-site operating conditions.
Don’t Overlook Maintenance Costs and Long-term Operational Value of Medium and Low Voltage Switchgear
Most B-end purchasers fixate on initial procurement prices when sourcing medium and low voltage switchgear. However, maintenance expenditure matters greatly from a long-run operation perspective.
A reliable medium and low voltage switchgear solution should help users:
- Cut unplanned shutdowns
- Boost maintenance efficiency
- Extend equipment service life
In industrial production scenarios, a single production halt will incur massive economic losses. Therefore, reliability of medium and low voltage switchgear outweighs minor gaps in upfront costs.
At Wondon, we deliver targeted medium and low voltage switchgear schemes for overseas clients based on their real operating conditions rather than merely product parameters.
Choose a Qualified Supplier with Rich Experience in Medium and Low Voltage Switchgear Projects
Apart from product performance, supplier competence is another decisive factor for selecting medium and low voltage switchgear. A trustworthy manufacturer not only supplies equipment but also accurately understands your project demands.
Key aspects to assess suppliers:

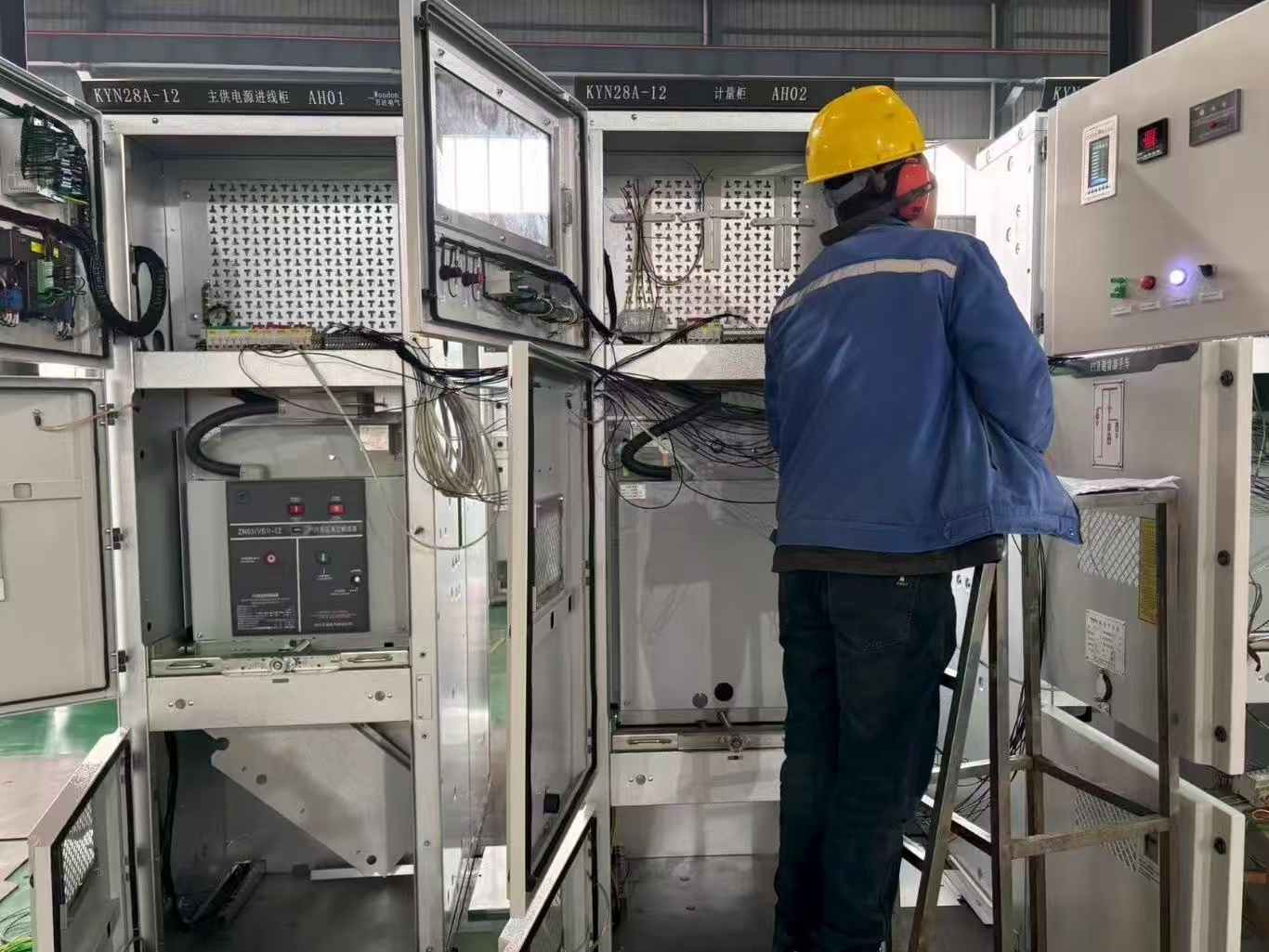

Manufacturing Capacity & Quality Control
Learn about production workflows, factory testing standards, and quality management systems, all of which directly affect the stable operation of delivered medium and low voltage switchgear.
Technical Support & Customization Capacity
Electrical standards, installation environments and design specifications differ across countries and individual projects. Hence, suppliers’ capability to provide technical communication and customized medium and low voltage switchgear schemes is worthy of full consideration.
Medium and Low Voltage Switchgear Selection Checklist
Verify the following items before confirming your procurement plan:
| Inspection Item | Verification Questions |
|---|---|
| Voltage Class | Does the medium and low voltage switchgear match your power system? |
| Load Demand | Is the rated current of medium and low voltage switchgear compliant with actual operation? |
| Safety Performance | Does the medium and low voltage switchgear satisfy project safety requirements? |
| Safety Performance | Does the medium and low voltage switchgear satisfy project safety requirements? |
| Installation Environment | Can the medium and low voltage switchgear adapt to on-site working conditions? |
| Maintenance Requirement | Is daily overhaul of the medium and low voltage switchgear convenient? |
| Supplier Competence | Does the supplier have experience delivering medium and low voltage switchgear for similar projects? |
Appropriate Medium and Low Voltage Switchgear Lays a Foundation for Long-term Project Operation
Selecting proper medium and low voltage switchgear is not about finding the lowest-priced product, but securing a solution aligned with project demands, safety criteria and long-term operational goals.
For industrial enterprises, EPC contractors and electrical equipment purchasers, a complete medium and low voltage switchgear selection process covers power system demands, application environment, technical parameters, safety specifications and supplier capacity for comprehensive evaluation.
FAQs
1. How do I choose the right medium and low voltage switchgear?
The right switchgear should be selected based on voltage level, rated current, short-circuit capacity, installation environment, safety requirements, and future expansion needs. The best choice depends on your specific power distribution system and application conditions.
2. What factors should be considered when selecting industrial switchgear?
Industrial buyers should consider electrical requirements, load capacity, protection level, maintenance convenience, equipment reliability, and compliance with project standards before making a decision.
3. What is the difference between medium voltage and low voltage switchgear?
Medium voltage switchgear is mainly used in power distribution systems with higher voltage levels, such as industrial plants and substations. Low voltage switchgear is commonly used for final power distribution and equipment control applications.
4. Why is short-circuit capability important when choosing switchgear?
Short-circuit withstand capability helps ensure that switchgear can safely handle abnormal current conditions and protect electrical systems, equipment, and personnel during operation.
5. How can I select a reliable switchgear manufacturer?
A reliable manufacturer should have strong production capability, quality control processes, technical support experience, and the ability to provide solutions based on project requirements.
Conclusion
As an electrical equipment manufacturer, Wondon always centers on clients’ practical project demands. We develop medium and low voltage switchgear complying with working conditions, power grid standards, and local application requirements worldwide. Supported by rigorous product design, professional and efficient technical communication, and full-cycle supporting services, we assist overseas clients in building stable, safe, and high-efficiency power distribution systems and consolidating the power operation foundation for industrial production and infrastructure construction.
The reliability of electrical power distribution systems directly determines overall project operation efficiency and long-term operational safety, while medium and low voltage switchgear selection acts as a core link deciding project quality, maintenance costs and service lifecycle.
If you are planning a new industrial power distribution project, correct selection of medium and low voltage switchgear marks a crucial first step to project success. Wondon looks forward to in-depth communication on your project demands, providing customized full-set solutions including preliminary scheme assessment, medium and low voltage switchgear customization, and post-delivery technical support. We cooperate with global partners to tackle complex engineering challenges and maximize project value together. Contact us today to discuss your project requirements.
