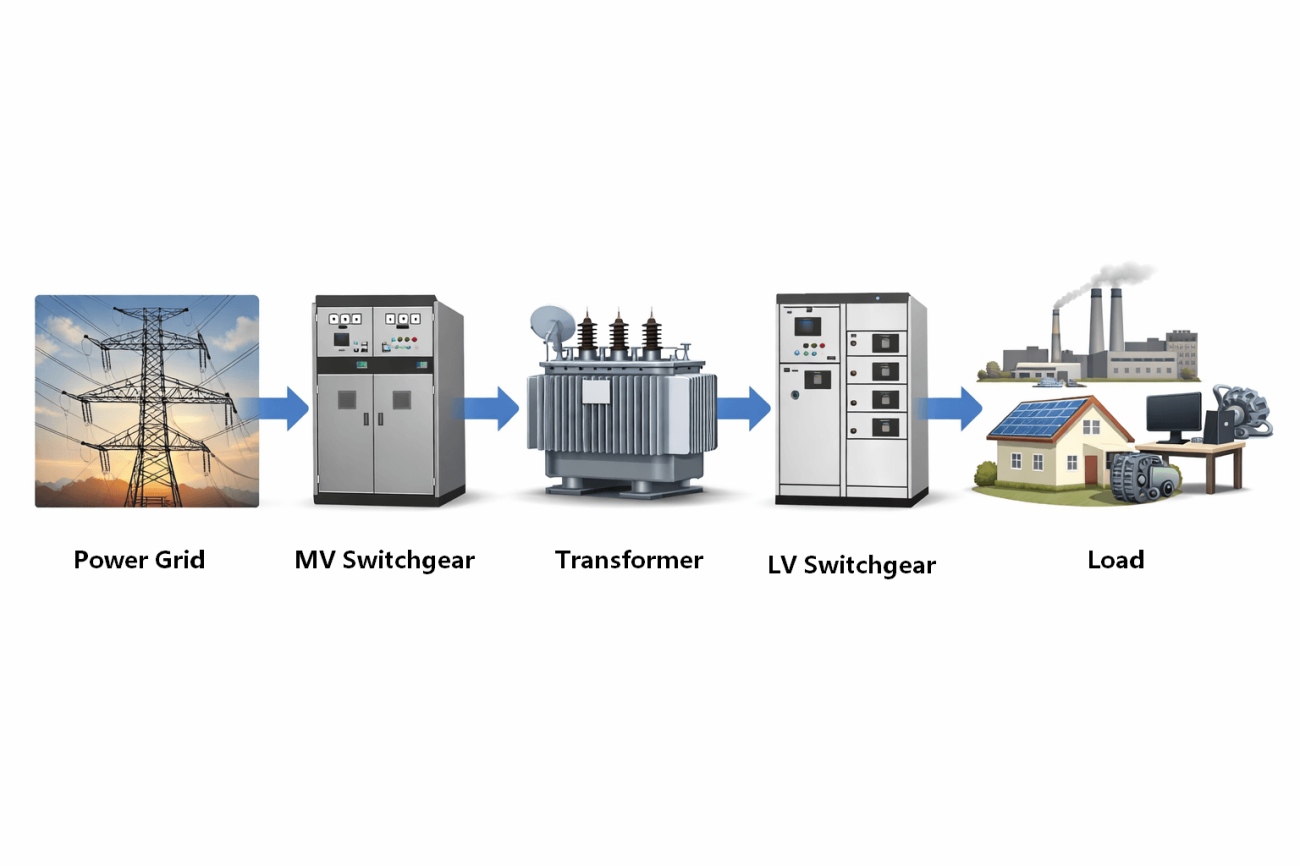

The containerized substation functions as a self-contained, integrated power conversion unit, operating via a straightforward process. Upon connection to the utility grid, incoming power first passes through the medium-voltage switchgear housed within the container. This switchgear is responsible for connecting and disconnecting circuits; additionally, it incorporates fault protection capabilities to facilitate the preliminary control and distribution of the incoming electrical energy. Subsequently, the power is routed to the built-in power transformer, where voltage conversion is achieved through the principle of electromagnetic induction—stepping down the higher-voltage input to the lower voltage level specifically required by the on-site loads. Following this step-down process, the low-voltage power enters the low-voltage distribution section, where it is channeled through components such as circuit breakers and busbars to be distributed, circuit by circuit, to the various downstream power supply lines.
Throughout this entire operational cycle, the accompanying control and protection system continuously monitors critical parameters such as voltage, current, and temperature. Should any anomalies—such as overloads, short circuits, or undervoltage conditions—arise, the system responds immediately to isolate the faulty circuit, thereby safeguarding the integrity of both the equipment and the power lines. Ultimately, a stable supply of low-voltage electrical energy is delivered to power the end-user loads.
FAQs
1. If I connect a containerized substation to my project, how does it actually work?
It receives grid power, steps it down, and distributes it directly to your loads. In Wondon projects, we design it as a ready-to-run unit so your site can operate with minimal on-site setup.
2. What happens first when power enters the system on site?
The MV switchgear receives incoming power and manages switching and protection. At Wondon, we set this stage to ensure your system starts with stable and controlled power input.
3. How do I get the right voltage for my equipment?
The transformer reduces high voltage to the level your equipment actually uses. Wondon engineers select transformer capacity based on your real load conditions.
4. How is power distributed across my project?
LV panels split power into multiple circuits for different loads. From Wondon’s experience, this helps your site run smoothly even when demand changes.
5. If a fault happens, how is my project protected?
The system detects it and isolates the faulty circuit automatically. Wondon designs this protection logic to help you reduce downtime and keep operations stable.
